UV, IR and SWIR Lenses

Ultraviolet and Infrared lenses can often be very expensive and it can be difficult to find a lens that meets your specific needs.

Of the many UV, IR and SWIR lenses Resolve Optics has designed over the years, most are designed for specialised applications. The lenses listed in this section have been selected as those suitable for the widest range of applications.

UV Lenses

231-000 60mm f/3.5 UV Lens.

Utilising the same optics as our 228-000 lens the 231-000 is aimed at research houses. The optics are mounted is a simple mount which only has iris control so that the lens can be adapted and mounted by the customer to suite their individual requirements.

The 231-000 63mm UV lens was designed with research and development in mind. The lens has a basic mount which provides iris control but not focusing. This enables the lens to be mounted per the users requirements. Resolve Optics can also provide focus adapters to order.

Key points:
♦ High quality optical components
♦ Easy to use
♦ High resolution images
♦ Basic mount

In keeping with Resolve Optics tradition of designing unique lenses we are able to provide NB lenses to meet your exact specification. If you can not find a lens, within our standard range that meets your requirements, please contact us to discuss the possibility of developing a lens for you.

Download full technical details

231-000 60mm f/3.5 UV Lens - Resolve optics

UV Lenses

235-000 30mm f/3.5 UV Lens.

The 235-000 lens is a high performance UV lens. A very compact focusing mount makes this a very versatile lens for research, industrial or forensic UV imaging.

he 235-000 30mm UV lens was designed as a general use lens for RUVIS systems. The lens has a unique focus mount which enables objects to be focused on from infinity down to 300mm.

Key points:
♦ Compact Design
♦ Easy to use
♦ High resolution images
♦ Focusing mount

In keeping with Resolve Optics tradition of designing unique lenses we are able to provide NB lenses to meet your exact specification. If you can not find a lens, within our standard range that meets your requirements, please contact us to
discuss the possibility of developing a lens for you.

Download full technical details

235-000 30mm f/3.5 UV Lens - Resolve Optics

UV Lenses

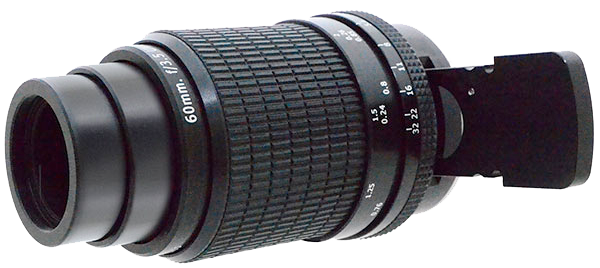

228-000  60mm f/3.5 UV Forensic Lens.

Designed specifically for forensic RUVIS this is a full featured high performance UV forensic lens. The lens has an extended magnification range by using a novel telescopic focusing mount giving a large movement in an extremely compact form. This is perhaps the first lens of any type that offers the capability to image objects from infinity down to 1:1.25 magnification without using add-on adapters.

• Compact design providing a small lens to match the hand-held concept of a
RUVIS system.

• Larger field of view to match the fingerprint application (8.3º at 1:1.25
magnification up to 16.6º at long object distances) and fundamental to
achieving many of the technical improvements listed here.

• Improved lighting efficiency – because the 228-000 lens, with its larger field
of view, brings both UV lights and UV imager closer to the object than is the
case with longer focal length lenses offering an identical view. The light level
varies in proportion to the square of the object distance, and so the gain in
lighting efficiency is approximately given by the ratio of focal lengths, e.g. the
new 60 mm new lens in place of an 80 mm lens gives increased lighting
efficiency of (80/60)2 = x1.78 or 78% more light on the scene.

Download full technical details

228-000  60mm f/3.5 UV Forensic Lens - Resolve Optics

SWIR Lenses

349-000   25mm f/1.4 SWIR Fixed Focus Lens.

Through careful design and selection of glass types, matched with AR coatings – Resolve Optics Model 349 Series SWIR lenses deliver unmatched resolution and colour correction ensuring that you get the best possible image from your camera or sensor.

The 349-000 Lens has been designed specifically for SWIR waveband of 0.9 – 1.7 μm. Most off the shelf lenses aimed at the SWIR market are actually just designed for the visible spectrum but have AR coating for the SWIR bandwidth.

This will result in a significant drop in resolution and poor colour correction. Resolve Optics ltd has carefully selected the glass types used in the design of our SWIR lenses to ensured that the performance of the lens at 0.9 to 1.7 μm is no longer the restricting factor to providing the best possible image to your camera.

In keeping with Resolve Optics tradition of designing unique lenses we are able to provide lenses to meet your exact specification. If you can not find a lens, within our standard range that meets your requirements, please contact us to discuss the possibility of developing a lens for you.

Download full technical details

349-000   25mm f/1.4 SWIR Fixed Focus Lens - Resolve Optics

SWIR Lenses

363-000 16mm f/1.6 SWIR Lens.

The 363 series 16mm SWIR lens has been specially design for the SWIR waveband. The design utilises carefully selected glass types and AR coatings to ensure maximum transmission and best image quality in the SWIR band.

Most off the shelf lenses aimed at the SWIR market are actually just designed for the visible spectrum but have AR coating for the SWIR bandwidth. This will result in a significant drop in resolution and poor colour correction.

Resolve Optics Ltd has carefully selected the glass types used in the design of our SWIR lenses to ensured that the performance of the lens at 0.9 to 1.6 μm is no longer the restricting factor to providing the best possible image to your camera.

• Specifically designed for the SWIR bandwidth 900 to 1600 nm
• Utilises carefully selected glass types and coatings to ensure the best performance in the SWIR band.
• Fully colour corrected
• Focusing mount

Download full technical details

363-000 16mm f/1.6 SWIR Lens - Resolve Optics
