Radiation Resistant Lenses

Drawing upon approaching 30 years experience – Resolve Optics has built a strong reputation for specialist lens design and manufacture of smaller production quantities of radiation resistant lenses and optical products on time to strict quality and target price guidelines.

All optical elements within Resolve Optics radiation resistant (Non Browning) lens designs are made using cerium oxide doped glass or synthetic silica enabling them to withstand radiation doses of up to 100,000,000 rad and temperatures up to 55°C without discoloration or degradation of performance. All Resolve Optics radiation resistant lenses provide high image resolution and minimum geometric distortion from 400 to 750nm.

RADIATION RESISTANT LENS

1/3″ SENSOR

357-000 6.5 – 65mm f/1.8
Non-Browning Zoom Lens.

The Model 357 provides true HD quality images over an unrivalled 10x zoom range.

As the nuclear industry strives to develop better solid state colour CMOS sensors that can withstand higher levels of radiation it has created a demand for high performance radiation resistant lenses able to help fulfil the potential of these sensors.

Using specialist non browning glasses the Model 357 is able to produce clear sharp images free of the strong yellow tint that has traditionally been a limiting issue when using radiation resistant lenses on colour sensors.

Download full technical details

357-000  6.5 – 65 mm f/1.8 Non-Browning Zoom Lens - Resolve Optics

RADIATION RESISTANT LENS

2/3″ SENSOR

357-001 12 – 120mm f/3.6
Non-Browning Zoom Lens.

The Model 357 provides true HD quality images over an unrivalled 10x zoom range.

As the nuclear industry strives to develop better solid state colour CMOS sensors that can withstand higher levels of radiation it has created a demand for high performance radiation resistant lenses able to help fulfil the potential of these sensors.

Using specialist non browning glasses the Model 357 is able to produce clear sharp images free of the strong yellow tint that has traditionally been a limiting issue when using radiation resistant lenses on colour sensors.

Download full technical details

357-000  6.5 – 65 mm f/1.8 Non-Browning Zoom Lens - Resolve Optics

RADIATION RESISTANT LENS

1/3″ SENSOR

357-003 6.5 – 65mm f/1.8 Motorised
Non-Browning Zoom Lens.

The Model 357 provides true HD quality images over an unrivalled 10x zoom range.

As the nuclear industry strives to develop better solid state colour CMOS sensors that can withstand higher levels of radiation it has created a demand for high performance radiation resistant lenses able to help fulfil the potential of these sensors.

Using specialist non browning glasses the Model 357 is able to produce clear sharp images free of the strong yellow tint that has traditionally been a limiting issue when using radiation resistant lenses on colour sensors.

Download full technical details

357-003 6.5 – 65 mm f/1.8 Motorised Non-Browning Zoom Lens - Resolve Optics

RADIATION RESISTANT LENS

2/3″ SENSOR

357-004 12 – 120mm f/3.6 Motorised
Non-Browning Zoom Lens.

The Model 357 provides true HD quality images over an unrivalled 10x zoom range.

As the nuclear industry strives to develop better solid state colour CMOS sensors that can withstand higher levels of radiation it has created a demand for high performance radiation resistant lenses able to help fulfil the potential of these sensors.

Using specialist non browning glasses the Model 357 is able to produce clear sharp images free of the strong yellow tint that has traditionally been a limiting issue when using radiation resistant lenses on colour sensors.

Download full technical details

12 – 120 mm f/3.6 Motorised Non-Browning Zoom Lens - Resolve Optics

RADIATION RESISTANT LENS

1/4″ SENSOR

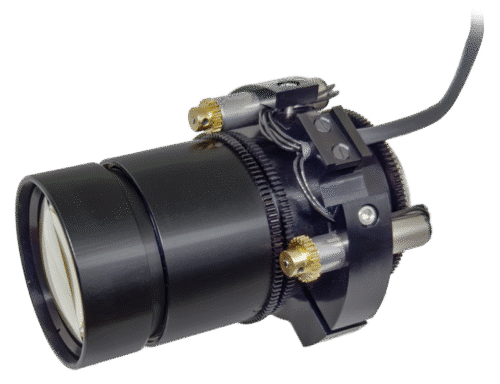

357-005 4.4 – 44mm f/2.8 Motorised
Non-Browning Zoom Lens.

The Model 357 provides true HD quality images over an unrivalled 10x zoom range.

As the nuclear industry strives to develop better solid state colour CMOS sensors that can withstand higher levels of radiation it has created a demand for high performance radiation resistant lenses able to help fulfil the potential of these sensors.

Using specialist non browning glasses the Model 357 is able to produce clear sharp images free of the strong yellow tint that has traditionally been a limiting issue when using radiation resistant lenses on colour sensors.

The Model 357 HD 10x zoom lens has been designed to operate in environments subject to high level radiation, such as nuclear fuel handling, reactor active zones and nuclear waste storage plants. The specialist non browing glass used in the Model 357 is proven to withstand long-term exposure to radiation up to a dose of 100,000,000.

Download full technical details

357-003 6.5 – 65 mm f/1.8 Motorised Non-Browning Zoom Lens - Resolve Optics

RADIATION RESISTANT LENS

346-000 23mm f/2 Non-Browning Motorised Fixed Focus Lens.

The Model 346 non-browning lens from Resolve Optics Ltd. has been designed to operate with colour sensors in areas subject to radiation.

The Model 346 lens was designed to utilise specially selected glasses with the least amount of yellow tint so that the image would be as natural as possible while still retaining non-browning performance in environments subject to radiation.

The Model 346 lens uses special glass that can withstand long-term exposure to radiation up to a dose of 100 million rad and temperatures to 55°C without discoloration. Operating up to f/2 it provides high image resolution and minimum geometric distortion from 400 to 750 nm, and it can image objects from 50mm to infinity without using add-on adapters. The Model 346 lens is designed for optimised use with 15mm diagonal colour CMOS sensors.

Download full technical details

346-000 23mm f/2 Non Browning Motorised Fixed Focus Lens - Resolve Optics

RADIATION RESISTANT LENS

390-000 5mm Non-Browning S-Mount Lens.

The 390-000 has been specifically designed for use with ¼” image format radiation resistant CCD cameras.

All Resolve Optics Ltd non-browning lenses are manufactured to the highest standards of quality and performance and are designed to withstand a total radiation dose of 108 rad.

This lens is a good demonstration of Resolve Optics ability to design a lens from the ground up to meet specific customer requirements.

Download full technical details

346-000 23mm f/2 Non Browning Motorised Fixed Focus Lens - Resolve Optics

RADIATION RESISTANT LENS

214-000  6 mm f/2 Non-Browning Fixed Focus Lens.

Designed specially for a 2/3″ format. All Resolve Optics radiation resistant non-browning lenses are made from 100% radiation hard materials. Special glass is used to avoid browning or discoloration when exposed to radiation.

All Resolve Optics Ltd non-browning lenses are manufactured to the highest standards of quality and performance and are designed to withstand a total radiation dose of 108 rad.

In keeping with Resolve Optics tradition of designing unique lenses we are able to provide NB lenses to meet your exact specification. If you cannot find a lens, within our standard range that meets your requirements, please contact us to discuss the possibility of developing a lens for you.

Download full technical details

214-000 6 mm f/2 Non Browning Fixed Focus Lens - Resolve Optics

RADIATION RESISTANT LENS

313-000  25mm f/1.4 Non-Browning Fixed Focus Lens.

The 313-000 Lens has been specifically design for 2/3-inch image format radiation resistant CID cameras. This lens has an aperture of f/1.4 to enable as much light as possible to be gathered and transmitted to the sensor.

All Resolve Optics Ltd non-browning lenses are manufactured to the highest standards of quality and performance and are designed to withstand a total radiation dose of 108 rad.

In keeping with Resolve Optics tradition of designing unique lenses we are able to provide NB lenses to meet your exact specification. If you cannot find a lens, within our standard range that meets your requirements, please contact us to discuss the possibility of developing a lens for you.

Download full technical details

313-000 25mm f/1.4 Non Browning Fixed Focus Lens - Resolve Optics

RADIATION RESISTANT LENS

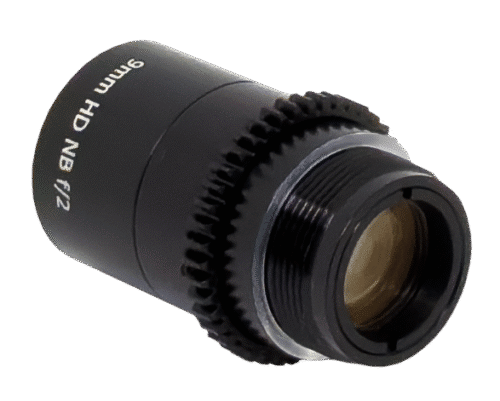

286-000  9mm f/2 Non-Browning Fixed Focus Lens.

The 286-000 Lens has been specifically designed for 2/3 inch image format
radiation resistant CCD cameras.

All Resolve Optics Ltd non-browning lenses are manufactured to the highest standards of quality and performance and are designed to withstand a total radiation dose of 108 rad.

In keeping with Resolve Optics tradition of designing unique lenses we are able to provide NB lenses to meet your exact specification. If you cannot find a lens, within our standard range that meets your requirements, please contact us to discuss the possibility of developing a lens for you.

Download full technical details

313-000 25mm f/1.4 Non Browning Fixed Focus Lens - Resolve Optics

ZOOM LENS

200-000  8-24mm f/2.8 3:1 Non-Browning Zoom Lens.

Extremely Compact design, high resolution, radiation resistant non-browning zoom lens. All Resolve Optics radiation resistant non-browning lenses are made from 100% radiation hard materials. Special glass is used to avoid browning or discoloration when exposed to radiation.

The 200-000 Lens has been designed specifically for use in the nuclear industry. The X3 optical tracking zoom utilises special glass that can withstand exposure to high radiation without discoloration and produces a high resolution image. All Resolve Optics Ltd non-browning lenses are manufactured to the highest standards of quality and performance and are designed to withstand a total radiation dose of 108 rad.

Download full technical details

200-000 8-24mm f/2.8 3:1 Non-Browning Zoom Lens - Resolve Optics

ZOOM LENS

200-001  8-24mm f/2.8 3:1 Motorised Non-Browning Zoom Lens.

Extremely compact design, high resolution, radiation resistant motorised non-browning zoom lens. All Resolve Optics radiation resistant non-browning lenses are made from 100% radiation hard materials. Special glass is used to avoid browning or discoloration when exposed to radiation.

The 200-001 Lens has been designed specifically for use in the nuclear industry. This very compact motorised X3 optical tracking zoom utilises special glass that can withstand exposure to high radiation without discoloration and produces a high resolution image. Motorised functions; zoom, Iris and focus control. All Resolve Optics Ltd non-browning lenses are manufactured to the highest standards of quality and performance and are designed to withstand a total radiation dose of 108 rad.

Download full technical details

200-000 8-24mm f/2.8 3:1 Non-Browning Zoom Lens - Resolve Optics

ZOOM LENS

192-000  12-72mm f/1.8 6:1 Non-Browning Zoom Lens.

The Model 192 uses special glass that can withstand long-term exposure to radiation up to a dose of 100 million rad and temperatures to 55°C without discoloration.

Operating at f / 1.8, it provides high image resolution and minimum geometric distortion from 400 to 750nm, and it can image objects from 800 mm to infinity without using add-on adapters. When focused at infinity, the lens achieves high image resolution onaxis at full aperture throughout the zoom range without refocusing. It is designed for use with 1/2- and 2/3-inch CCTV cameras and with Newvicon and Chalnicon tubes.

Download full technical details

192-000 12-72mm f/1.8 6:1 Non-Browning Zoom Lens - Resolve Optics

ZOOM LENS

192-001   24-144mm f/3.6 6:1 Range Extended Non-Browning Zoom Lens.

Compact design radiation resistant non-browning zoom lens. All Resolve Optics radiation resistant non-browning lenses are made from 100% radiation hard materials. Special glass is used to avoid browning or discoloration when exposed to radiation.

The 192-001 Lens has been designed specifically for use in the nuclear industry.
The X6 optical tracking zoom utilises special glass that can withstand exposure to high radiation without discoloration and produces a high resolution image. All Resolve Optics Ltd non-browning lenses are manufactured to the highest standards of quality and performance and are designed to withstand a total radiation dose of 108 rad.
In keeping with Resolve Optics tradition of designing unique lenses we are able to provide NB lenses to meet your exact specification. If you can not find a lens, within our standard range that meets your requirements, please contact us to discuss the possibility of developing a lens for you.

Download full technical details

192-000 12-72mm f/1.8 6:1 Non-Browning Zoom Lens - Resolve Optics

ZOOM LENS

290-000   12-72mm f/1.8 6:1 Motorised Non-Browning Zoom Lens.

Compact design fully motorised radiation resistant non-browning zoom lens. All Resolve Optics radiation resistant non-browning lenses are made from 100% radiation hard materials. Special glass is used to avoid browning or discoloration when exposed to radiation.

The 290-000 Lens has been designed specifically for use in the nuclear industry. The X6 optical tracking zoom utilises special glass that can withstand exposure to high radiation without discoloration and produces a high-resolution image. Zoom Focus and Iris functions are motorised using 12-volt minimotors with slip clutches. Built in Noise suppression circuitry eliminates interference on video monitors. All Resolve Optics Ltd non-browning lenses are manufactured to the highest standards of quality and performance and are designed to withstand a total radiation dose of 108 rad.

Download full technical details

192-000 12-72mm f/1.8 6:1 Non-Browning Zoom Lens - Resolve Optics
